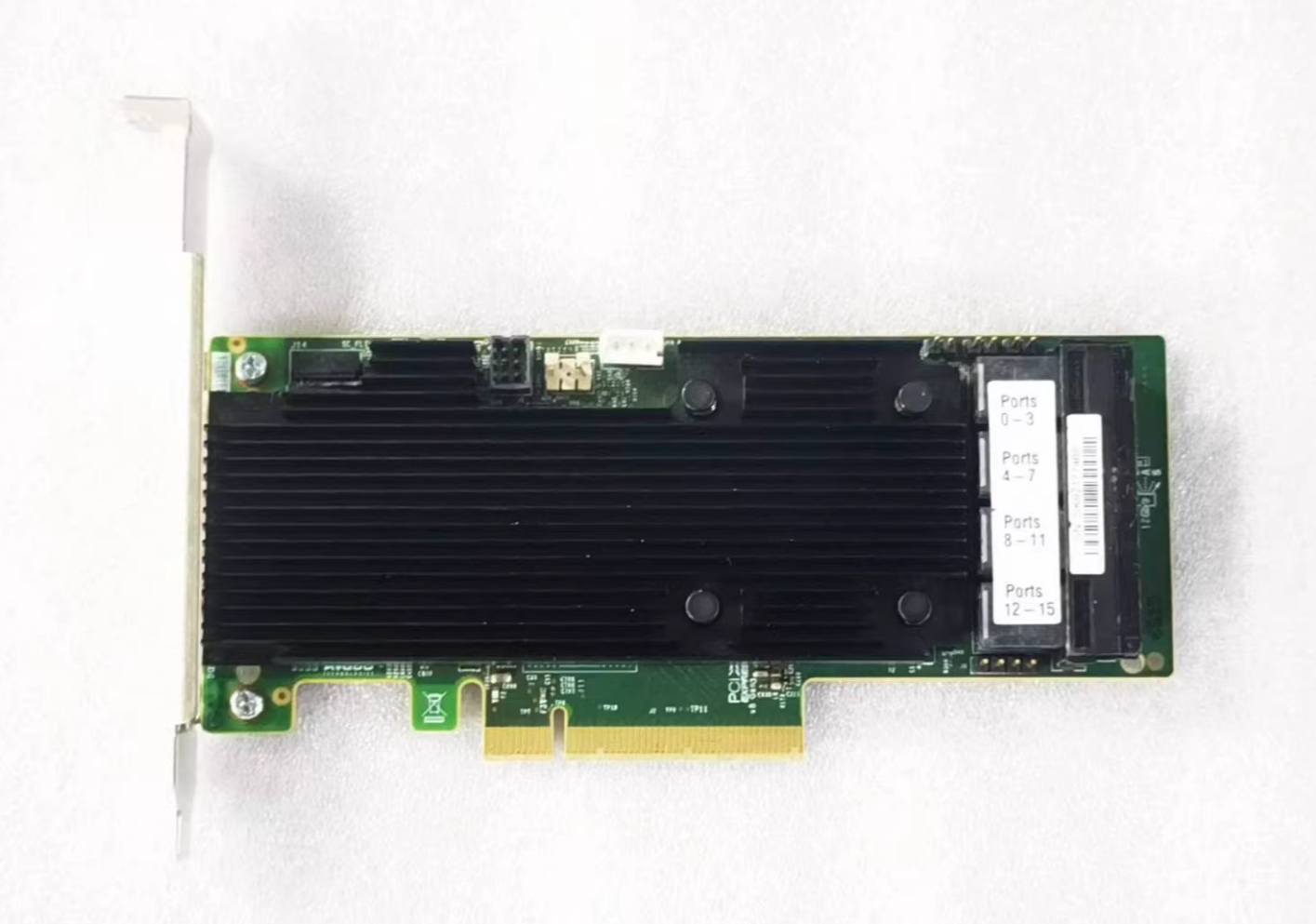

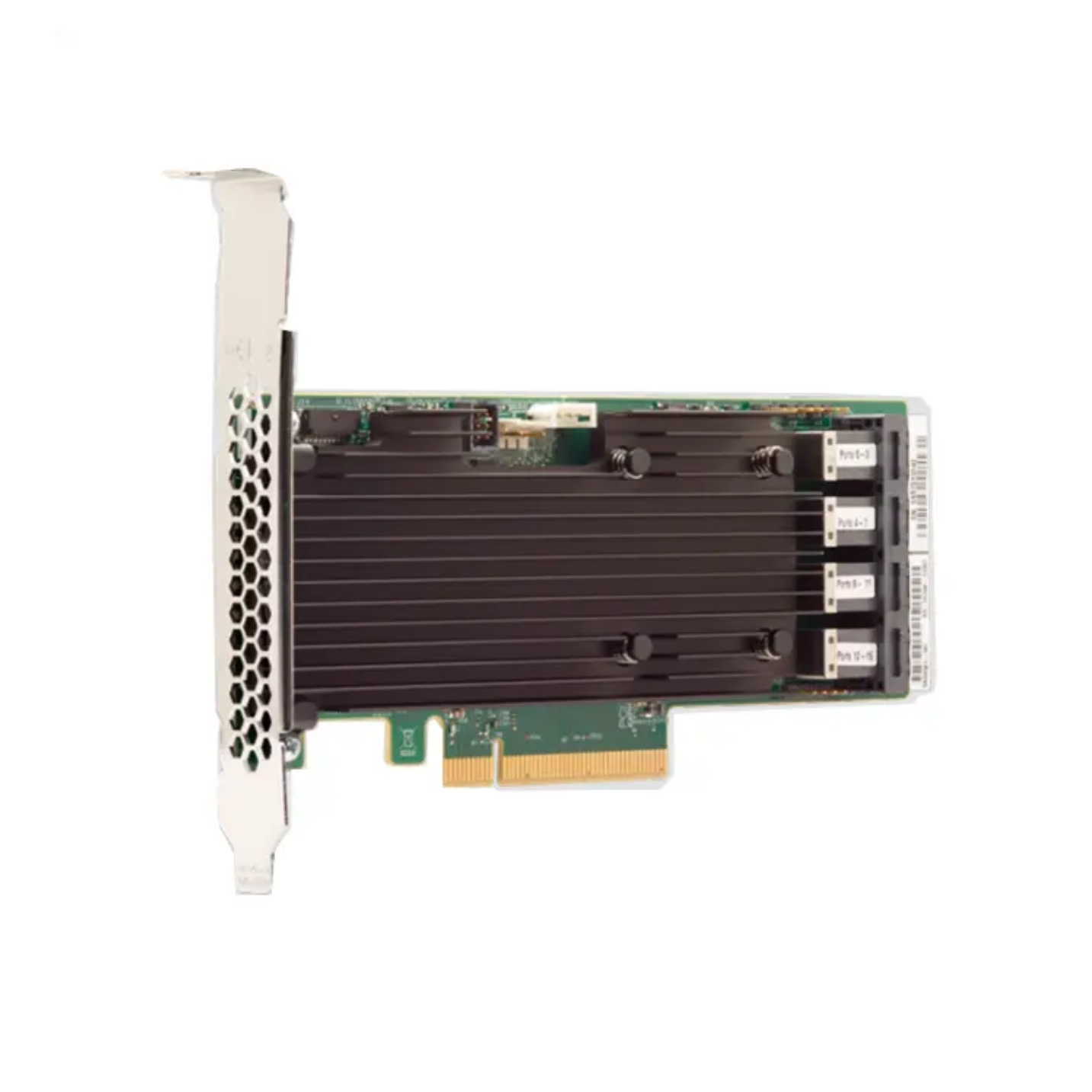

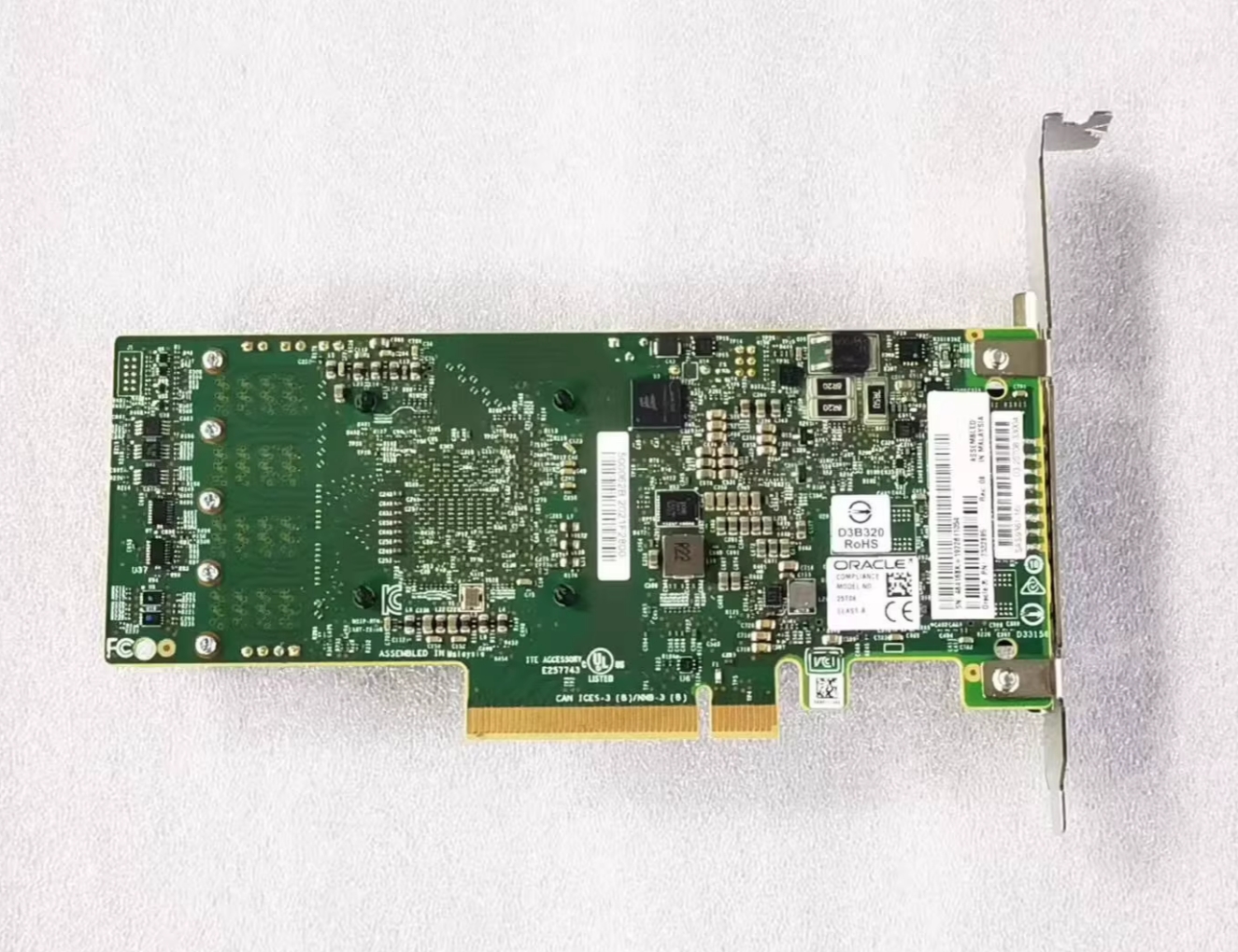

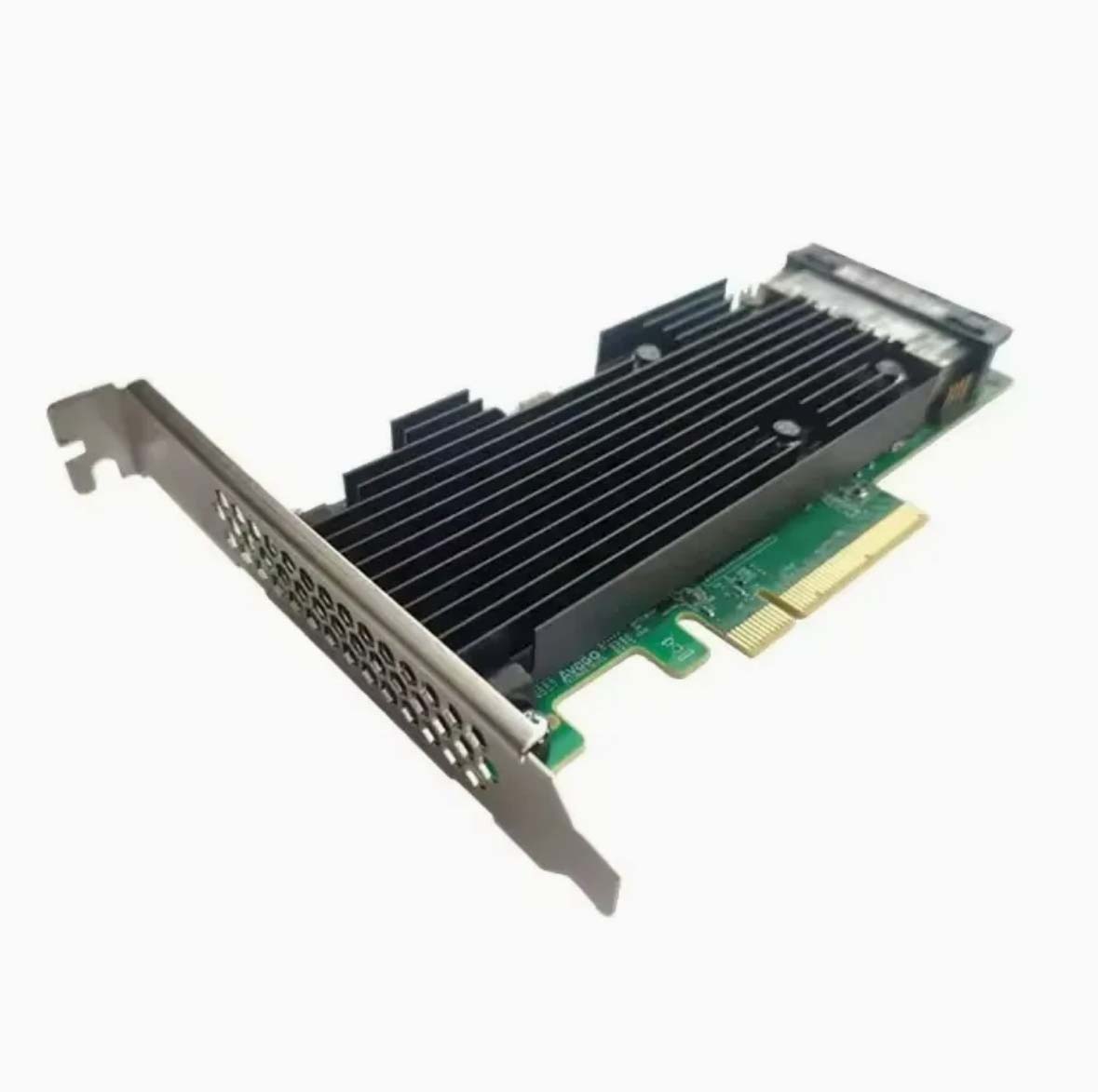

The Broadcom/LSI MegaRAID 9361-16i RAID controller card, featuring 16 native 12Gb/s SAS ports and a dual-core 1.2GHz processor, achieves a data transfer rate of up to 12Gb/s, significantly enhancing data throughput efficiency. It supports RAID levels 0/1/5/6/10/50/60. Combined with a 2GB DDR3 cache and CacheVault flash protection technology, it ensures data security and business continuity. The PCIe 3.0 x8 interface enables low-latency communication and is compatible with 240-device expansion, suiting high-density storage needs.
Its multi-mode management tools (WebBIOS/CLI/GUI) and mainstream server certifications provide a flexible and reliable enterprise-class storage solution for IT operations.
model | 9361-16I |
Core Chip | sas3316 RAID chip + Dual-core 1.2GHz PowerPC 476 Processor |
Interface Standard | 4× SFF-8643 Internal Connectors (Horizontal Installation), 16 Native 12Gb/s SAS/SATA Ports |
Host Interface | PCIe 3.0 x8 Slot |
Cache Configuration | 2GB DDR3 Cache, Supports CacheVault Flash Protection |
RAID Levels | Supports 0/1/5/6/10/50/60 and JBOD Modes |
Maximum Expansion Capability | Can Connect to 240 SAS/SATA Devices via Expander |
Data Transfer Rate | 12Gb/s SAS 3.0, Compatible with 6Gb/s SATA III |
Management Tools | Supports MegaRAID Storage Manager (WebBIOS/CLI/GUI) and StorCLI Command-line Tool |
Configuration Method | Press Ctrl+R During Boot to Enter Configuration Interface, Supports Virtual Disk Creation in Legacy/BIOS Modes |
Firmware Information | Can View Version Number, PCI Slot Number and Other Attributes via Controller Management Interface |
Enterprise-class Features | Supports Hot-plug, Online Capacity Expansion, Automatic Reconstruction, Optional CVPM02 Capacitor Backup Module |
Compatibility Certification | Compatible with Mainstream Servers such as Huawei/Inspur, Supports Windows/Linux/VMware Systems |
