Broadcom 9400-16i
￥1

型号：9400 - 16i

加入购物车

产品特征

三模式存储接口端口

支持 12、6 和 3Gb/s SAS 以及 6、3Gb/s SATA 数据传输速率

多达 8 个存储接口 PCIe 链路。每个链路支持每通道高达 8.0 GT/s (PCIe Gen3) 的 x4 或 x2 链路宽度

符合 SFF-9402 标准，连接器引脚分配

符合 SFF-8485 标准，SGPIO

PCIe 3.1 主机接口

  • 商品详情
  • 资料下载(PDF)

恒正同创第二次版详情页_01恒正同创第二次版详情页_02恒正同创第二次版详情页_03

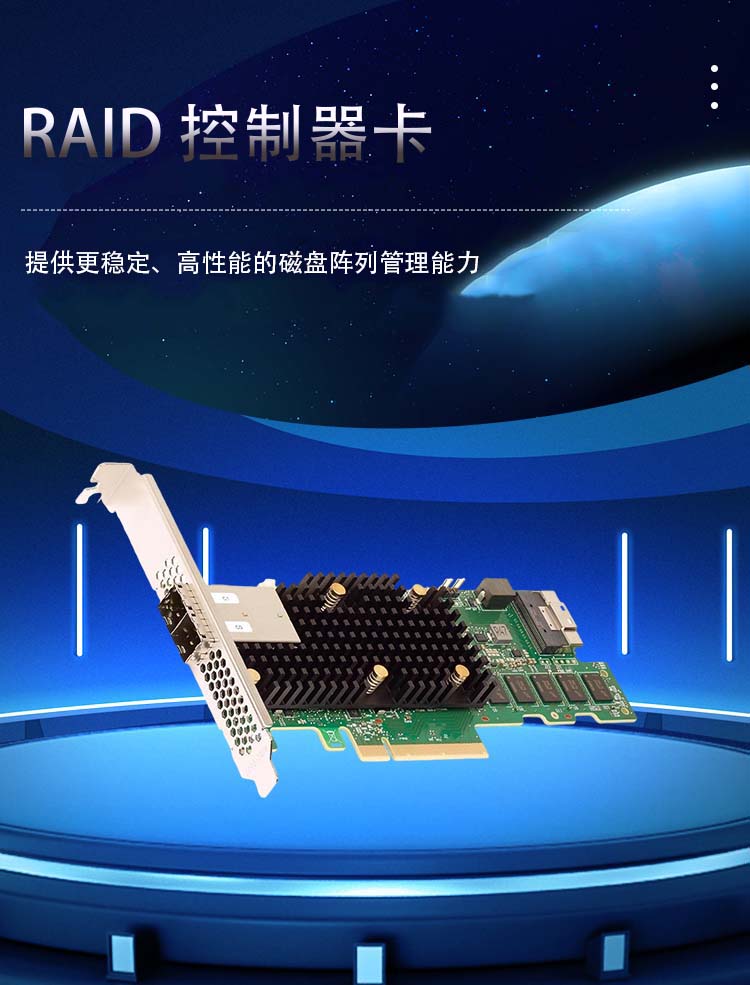

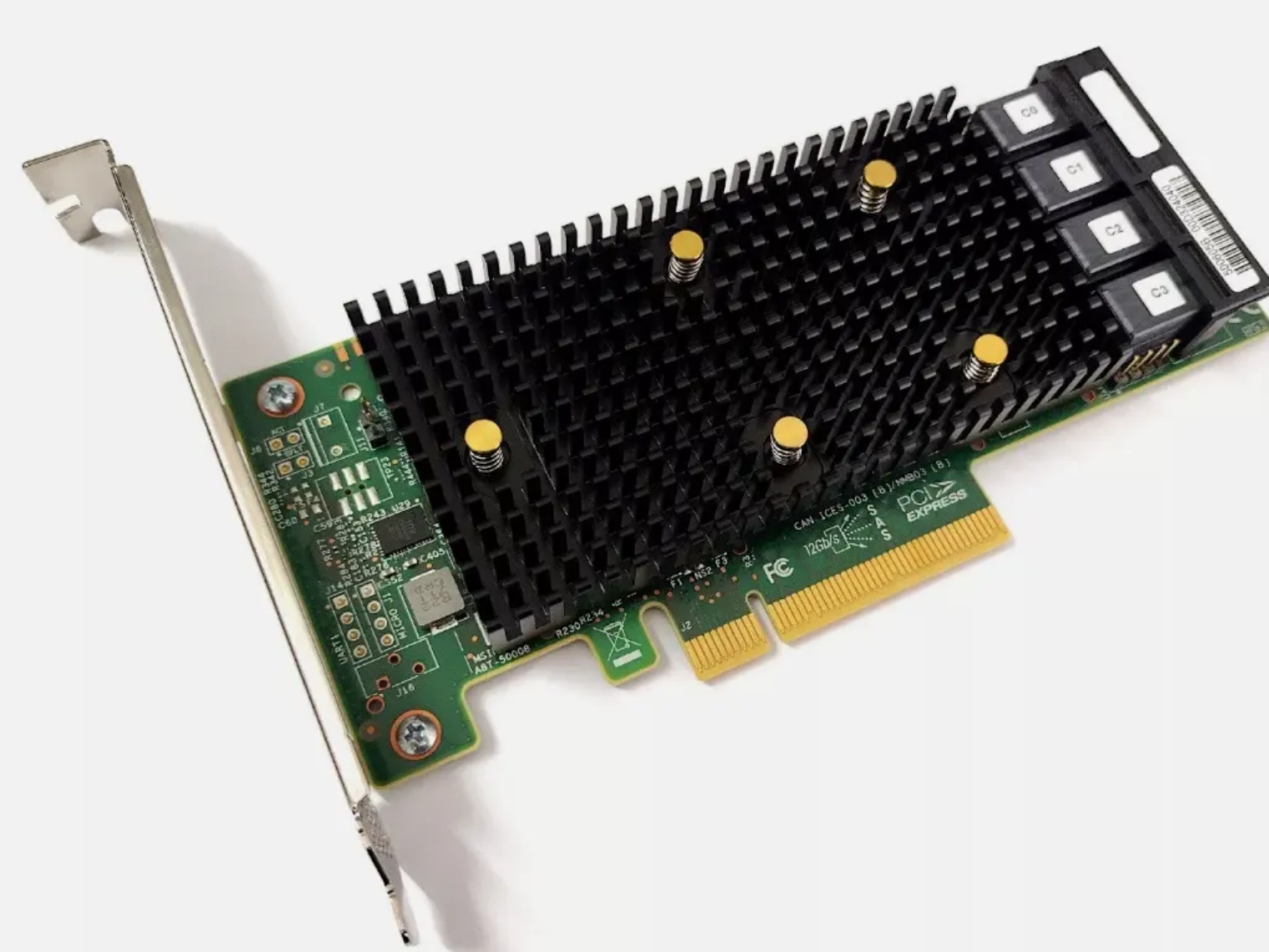

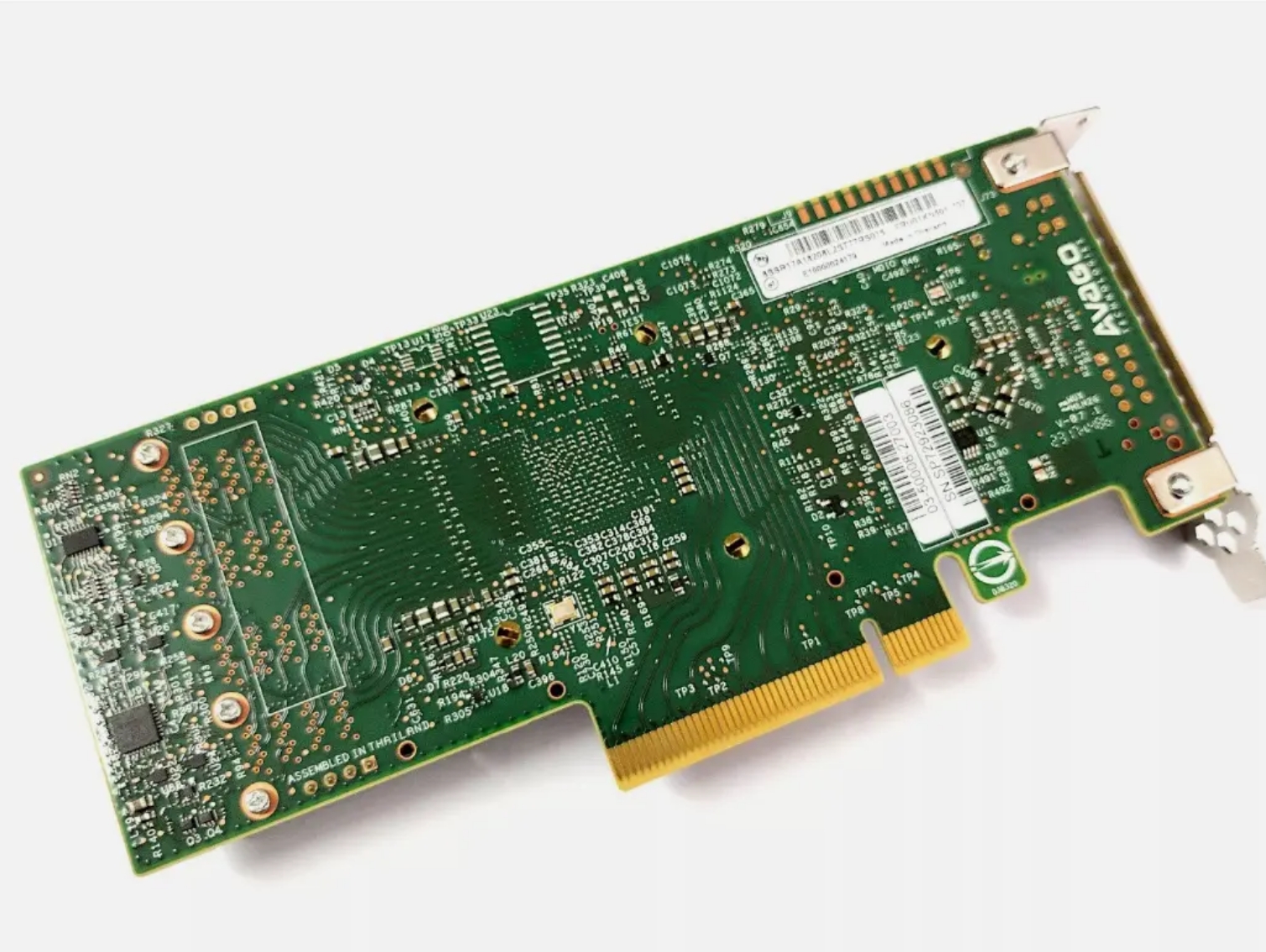

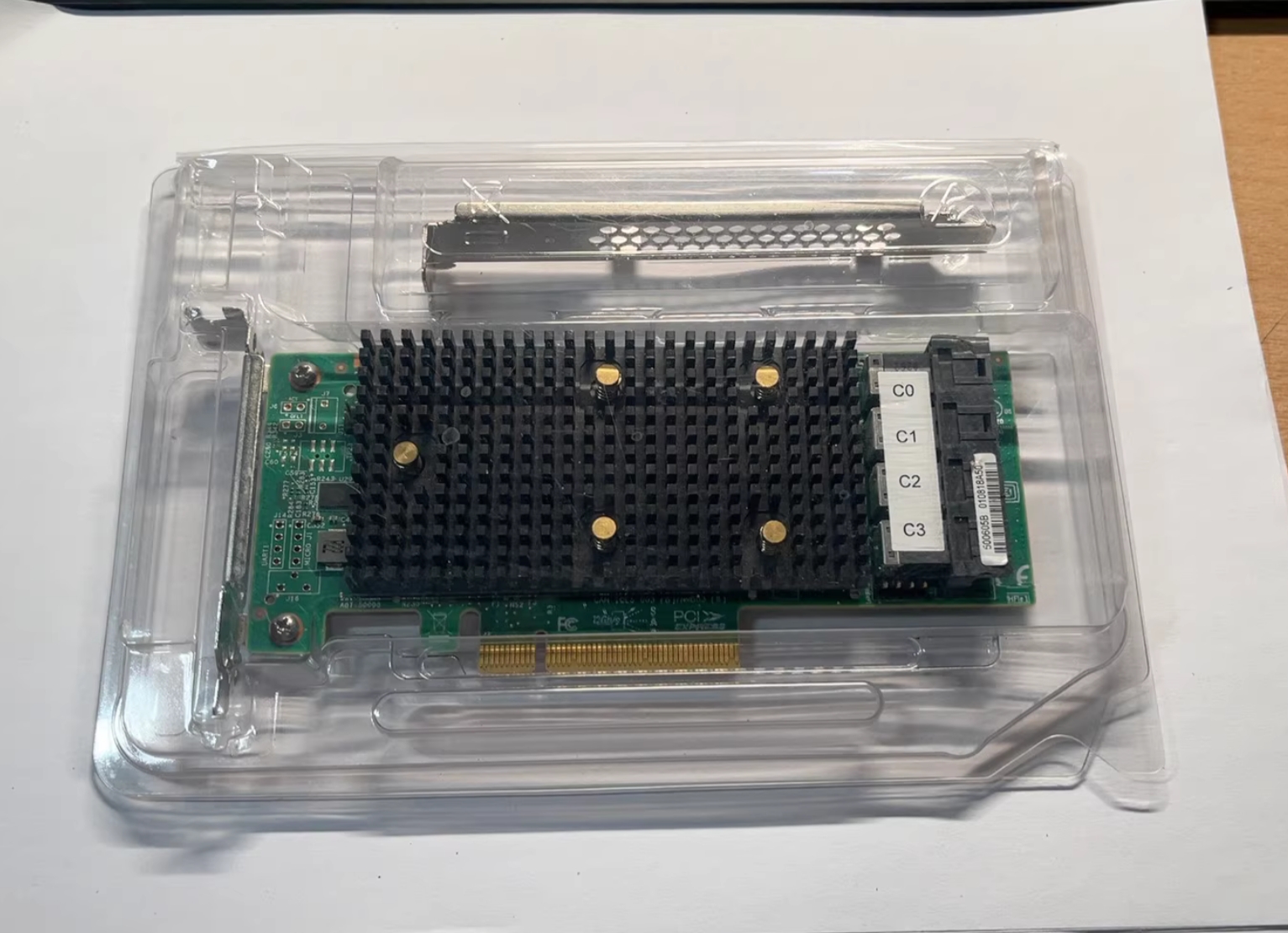

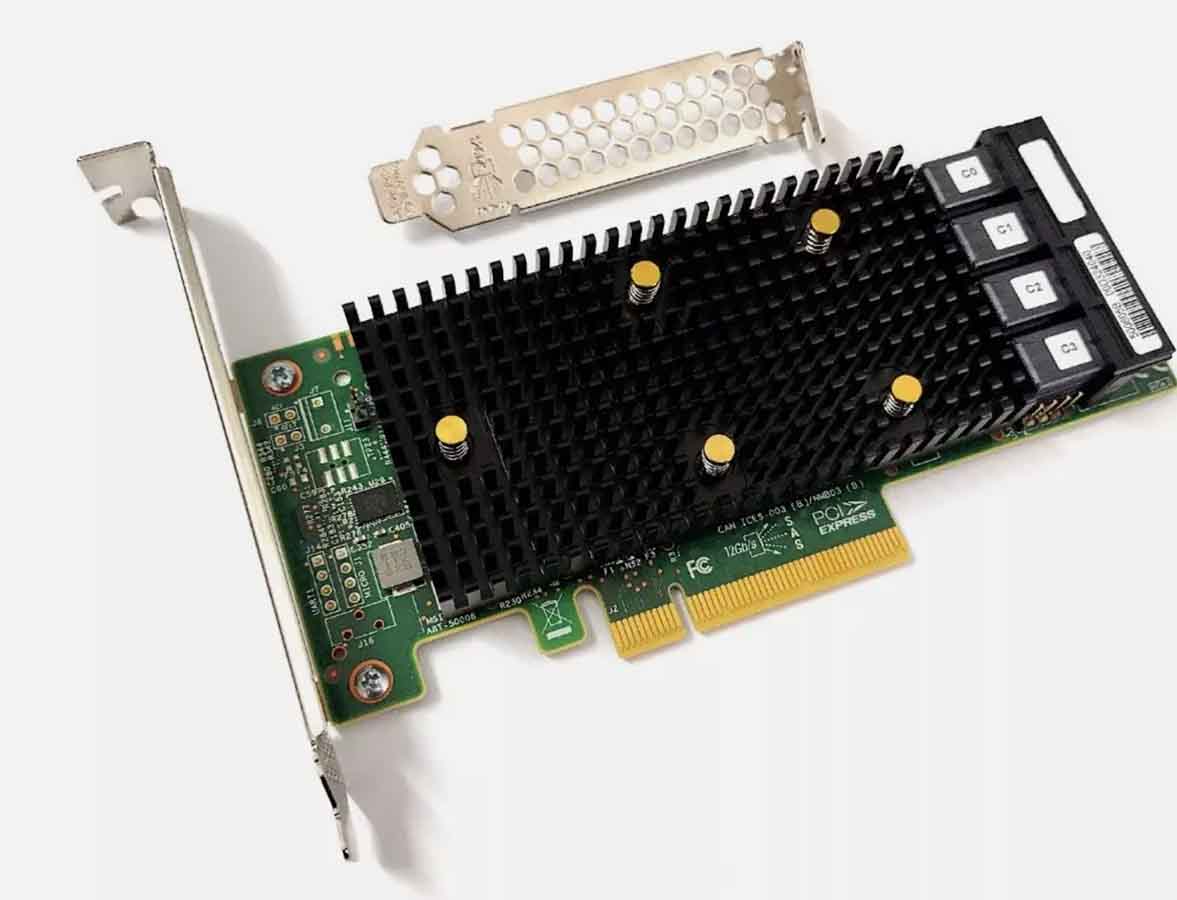

9400-16i RAID card

For Broadcom/LSI 9400-16i is a high-performance enterprise RAID card, which adopts PCIe 3.1 x8 interface and SAS 3516 dual-core controller, supports 12Gb/s SAS-3 transmission rate, and can connect 1024 SAS/SATA devices or 24 NVMe devices. It provides 4GB/8GB DDR4 cache option, supports RAID 0/1/5/6/10/50/60 level, is equipped with CacheVault data protection technology, is compatible with mainstream operating systems and servers, and is suitable for enterprise environments requiring high reliability and large storage.

model
9400-16i / LSI 9460-16i
physical parameter

measure
155.65mm × 68.9mm（Low profile design）
interface type
4个Mini-SAS HD（SFF-8643）Internal connector
performance parameter

Host bus type
PCI Express 3.1 x8 passage
Data transmission rate
12Gb/s SAS-3  standard
Maximum number of connected devices
SAS/SATA:1024; NVMe:24
Cache capacity
4GB DDR4(2133MHz) is standard, and 8GB is optional.
functional performance

RAID level support
RAID 0/1/5/6/10/50/60
Virtual disk support
Up to 64 Virtual Drive.
Hard disk group support
Up to 64 hard Drive Group, with a maximum of 240 hard disks in each group.
Cache protection technology
CacheVault CVPM -05
environmental requirement

Working temperature
0°C to 55°C
Working humidity
20%-80% Non-condensation
power consumption
11.95W
compatibility

Operating system support
Windows/Linux/VMware
Server compatibility
Support major mainstream servers
Management and maintenance

Administrative Tools
LSI storage administration (LSA), StorCLI command line tool, UEFI configuration interface.
